Specification
| Product Name | 6-12KW Off-Grid Solar System | |||
| Model | SP-6KW-OFF | SP-8KW-OFF | SP-10KW-OFF | SP-12KW-OFF |
| Solar Panel | 590W x 10pcs | 590W x 14pcs | 590W x 18pcs | 590W x 20pcs |

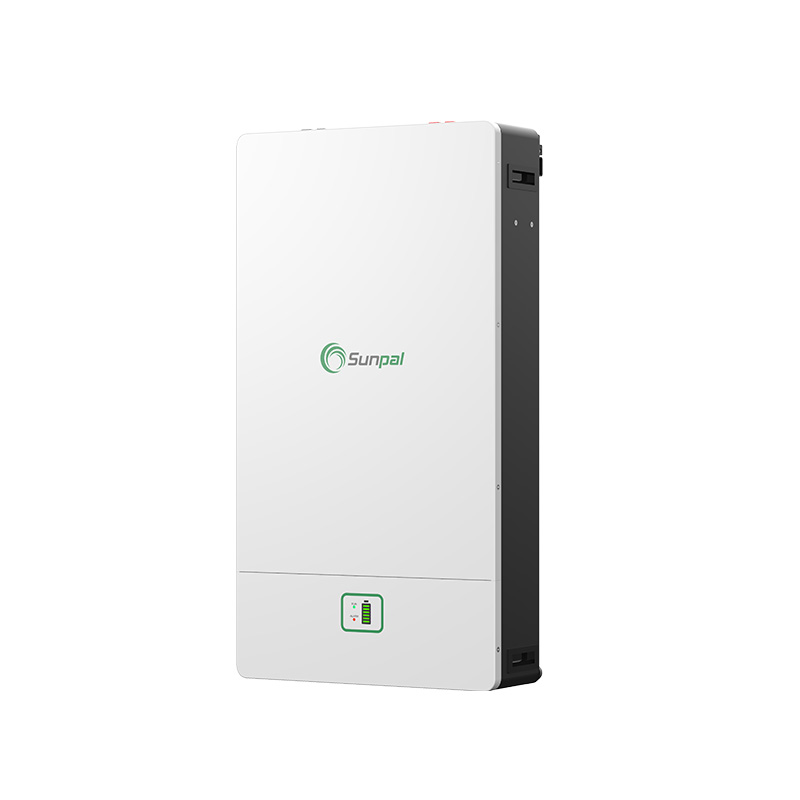

| Battery Capacity | Lithium 5.12KWh | Lithium 10.24KWh | Lithium 10.24KWh | Lithium 14.336KWh |
| No.of MPP Tracker | 1 | 2 | 2 | 2 |
| Rated AC Input | 3KW | 8KW | 10KW | 12KW |
| Daily Electricity Generation | 24-30Kwh | 32-40Kwh | 40-50Kwh | 48-60Kwh |
| Output Voltage | Single Phase/Split Phase | |||
| Protective Devices | Optional | |||
| Cales & Connectors | Optional | |||
| Installation Instructions. | Supportable | |||
| Mounting System | Customized for Roof or Ground Optional | |||
Sysetm Connecting Diagram
Real Picture & Packaging
What installation support is provided?
The system comes with installation instructions and is designed to be fully supportable for professional installation. Optional cables, connectors, and protective devices can be included based on project requirements.
Can the system power farm equipment and workshop loads?
Yes. The 6KW–12KW configurations can be used for appropriately sized agricultural and workshop loads. The selected system should be matched to the equipment's continuous power consumption and starting power requirements.
Can the system work without a utility grid connection?
Yes. As an off-grid solar system, it is designed to generate solar power, store excess energy in batteries, and supply connected loads independently of a conventional utility grid.
Are cables and connectors included?
Cables, connectors, and protective devices are available as optional components based on project requirements.
What information is needed to select the right system?
Provide your daily electricity consumption, peak load, major appliances, backup requirements, and installation location for proper system sizing.
