PV Mounting System

Secure Ballast Mounting Systems for Roof and Ground Solar Installations

PV Mounting System for Roof and Ground

  • Front view render of solar ballast mounting structure showing panel layout

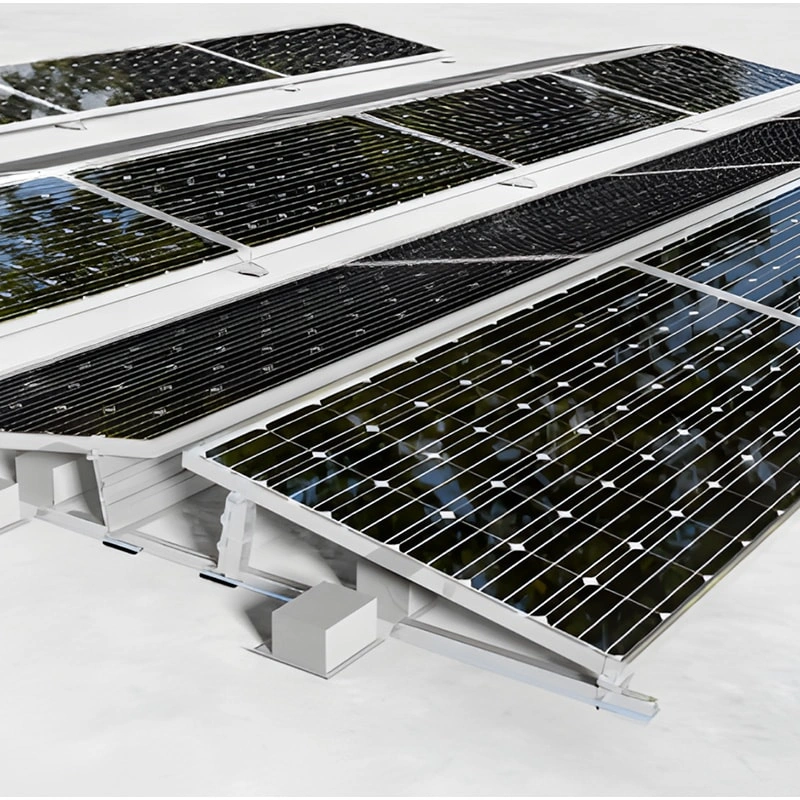

  • Side view render of durable ballast roof mounting structure showing support beams

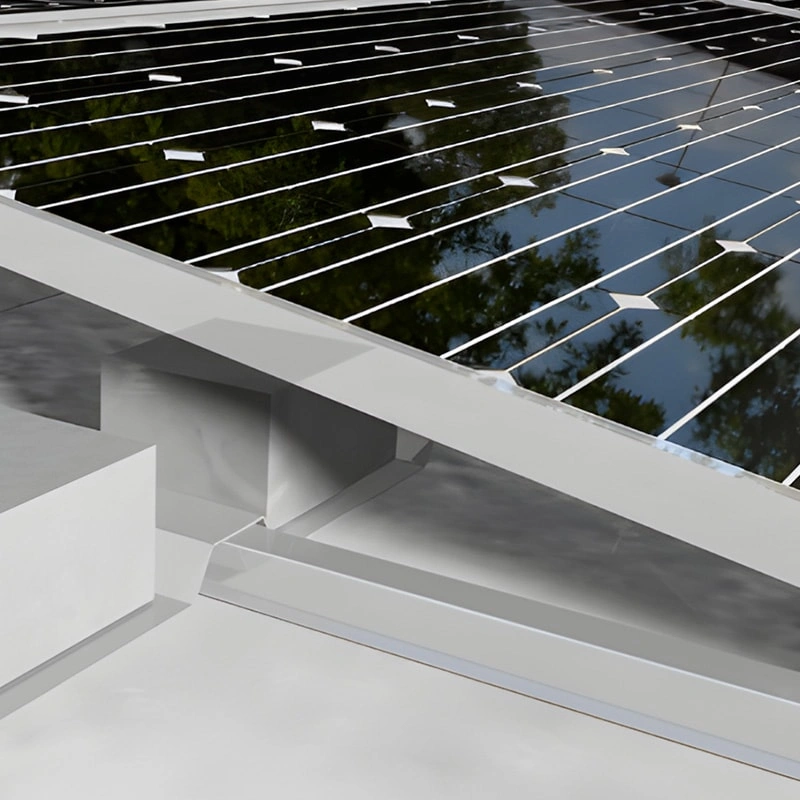

  • Side view detail render of ballast mounting structure showing panel arrangement

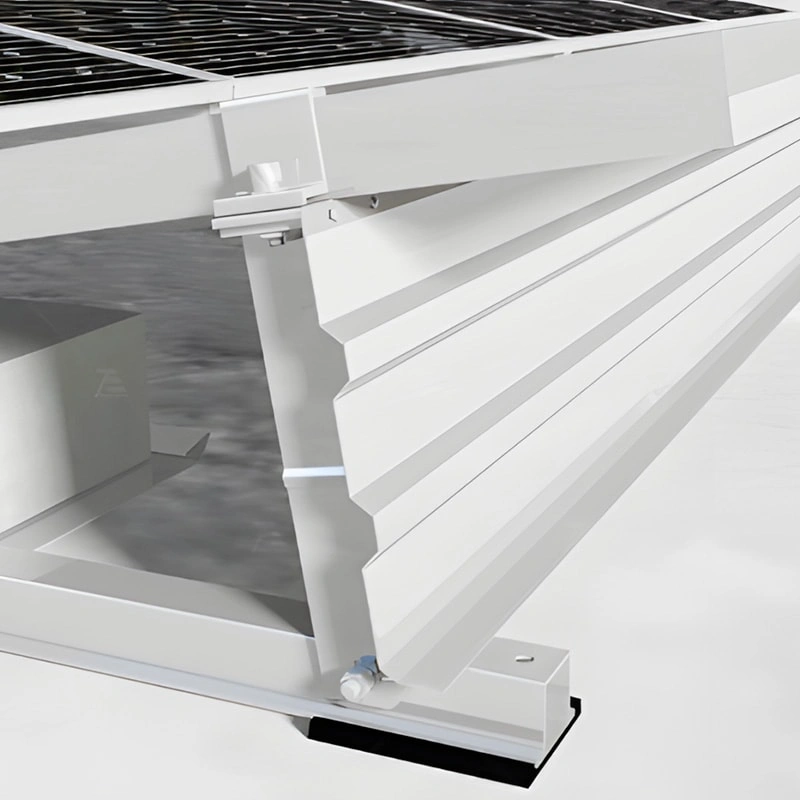

  • Close-up render of ballast mounting structure joints and connectors showing build quality

Ballast ground mounts are efficient and durable solar installation systems suitable for industrial, commercial, and large-scale ground PV projects. This system requires no ground drilling and is secured using ballast weights, minimizing land disruption. Made from high-strength steel or aluminum alloy, it provides excellent wind and snow resistance and long-term durability. Modular design simplifies installation, while adjustable tilt angles optimize solar exposure and daily energy generation, making it ideal for fast, low-maintenance, high-efficiency PV installations.

Datasheet Download Get Quote
ParameterDescription
MaterialHigh-quality galvanized steel / aluminum alloy
Compatible PanelsCrystalline silicon or thin-film solar panels
Tilt AngleAdjustable from 5° to 35°
Wind ResistanceUp to 60 m/s
Snow Load CapacityMaximum 1.4 kN/m²
Mounting TypeBallast-based, no ground bolts required
Module InstallationHorizontal or vertical options
Surface TreatmentHot-dip galvanization or powder coating
Service Life≥25 years
Ease of InstallationModular design for quick assembly

Actual diagram of ballast roof installation

FAQ

Why are ballast solar mounting structures preferred for commercial flat roofs?

Ballast mounting structures secure PV arrays using calculated concrete weight blocks and aerodynamic wind deflectors, requiring zero roof drilling or structural membrane penetration. This preserves existing 20-year commercial roof waterproofing warranties, eliminates water leakage risks, and allows rapid non-destructive installation across TPO, EPDM, PVC, and concrete flat roofs.

How do EPDM rubber protection pads prevent roof membrane friction and thermal movement damage?

High-density EPDM rubber protection mats are installed beneath every ballast aluminum foot and concrete block rail. The elastomeric rubber cushions structural loads, absorbs thermal expansion/contraction movement, and prevents abrasive friction against sensitive roof waterproofing membranes.
