Specification
| Product Name | 15-20KW Hybrid Solar System | ||
| Model | SP-15KW-HY | SP-18KW-HY | SP-20KW-HY |
| Solar Panel | 590W x 26pcs | 590W x 30pcs | 590W x 34pcs |
| Battery Capacity | Lithium 20.48KWh | Lithium 20.48KWh | Lithium 20.48KWh |
| No.of MPP Tracker | 2 | 2 | 2 |
| Rated AC Input | 15KW | 18KW | 20KW |
| Daily Electricity Generation | 60-75Kwh | 72-80Kwh | 80-100Kwh |
| Output Voltage | Three Phase / Split Phase | ||
| Protective Devices | Optional | ||
| Cales & Connectors | Optional | ||
| Installation Instructions. | Supportable | ||
| Mounting System | Customized for Roof or Ground Optional | ||
System Connecting Diagram

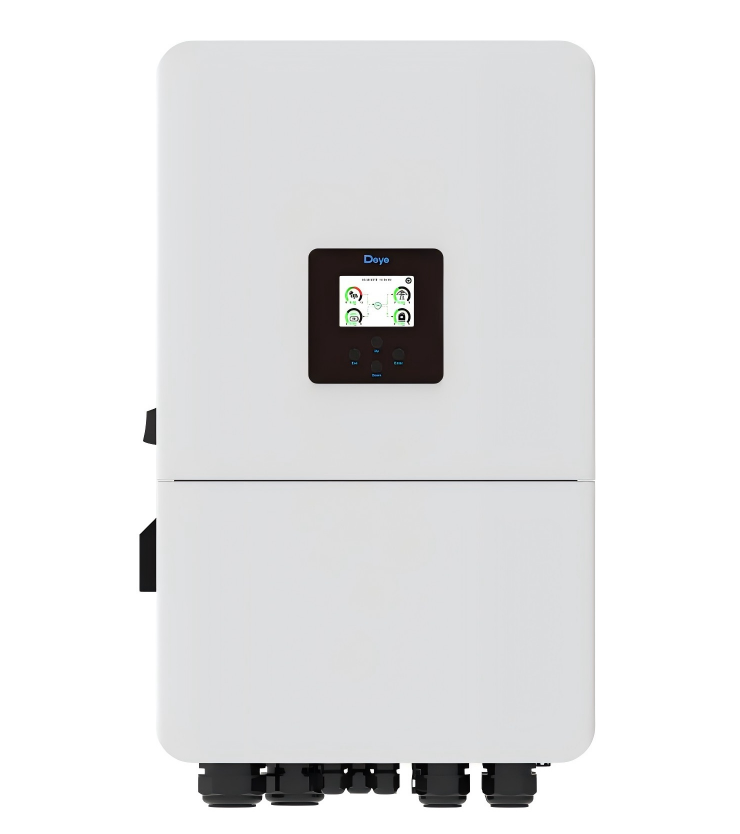

Product Picture
FAQ
What power ratings are available in this Deye three-phase hybrid inverter series?
This series offers four power capacities—15kW, 16kW, 18kW, and 20kW—all built on a robust three-phase architecture. Equipped with multiple independent MPPT trackers, these inverters optimize solar energy yield across complex multi-orientational rooftop arrays for high-demand residential and light commercial (C&I) applications.
Does this inverter support 100% unbalanced three-phase power output?
Yes. The Deye three-phase hybrid inverter supports 100% unbalanced output on each phase, allowing each individual phase to deliver up to 50% of the inverter’s total rated power. This ensures seamless power distribution across uneven household or industrial loads without tripping the system.
