Specification
| Product Name | 8-12KW Hybrid Solar System | ||
| Model | SP-8KW-HY | SP-10KW-HY | SP-12KW-HY |
| Solar Panel | 590W x 14pcs | 590W x 16pcs | 590W x 20pcs |
| Battery Capacity | Lithium 5.12KWh | Lithium 10.24KWh | Lithium 10.24KWh |
| No.of MPP Tracker | 2 | 3 | 3 |
| Rated AC Input | 8KW | 10KW | 12KW |
| Daily Electricity Generation | 32-40Kwh | 40-50Kwh | 48-60Kwh |
| Output Voltage | Three Phase / Split Phase | ||
| Protective Devices | Optional | ||
| Cales & Connectors | Optional | ||
| Installation Instructions. | Supportable | ||
| Mounting System | Customized for Roof or Ground Optional | ||
System Connecting Diagram

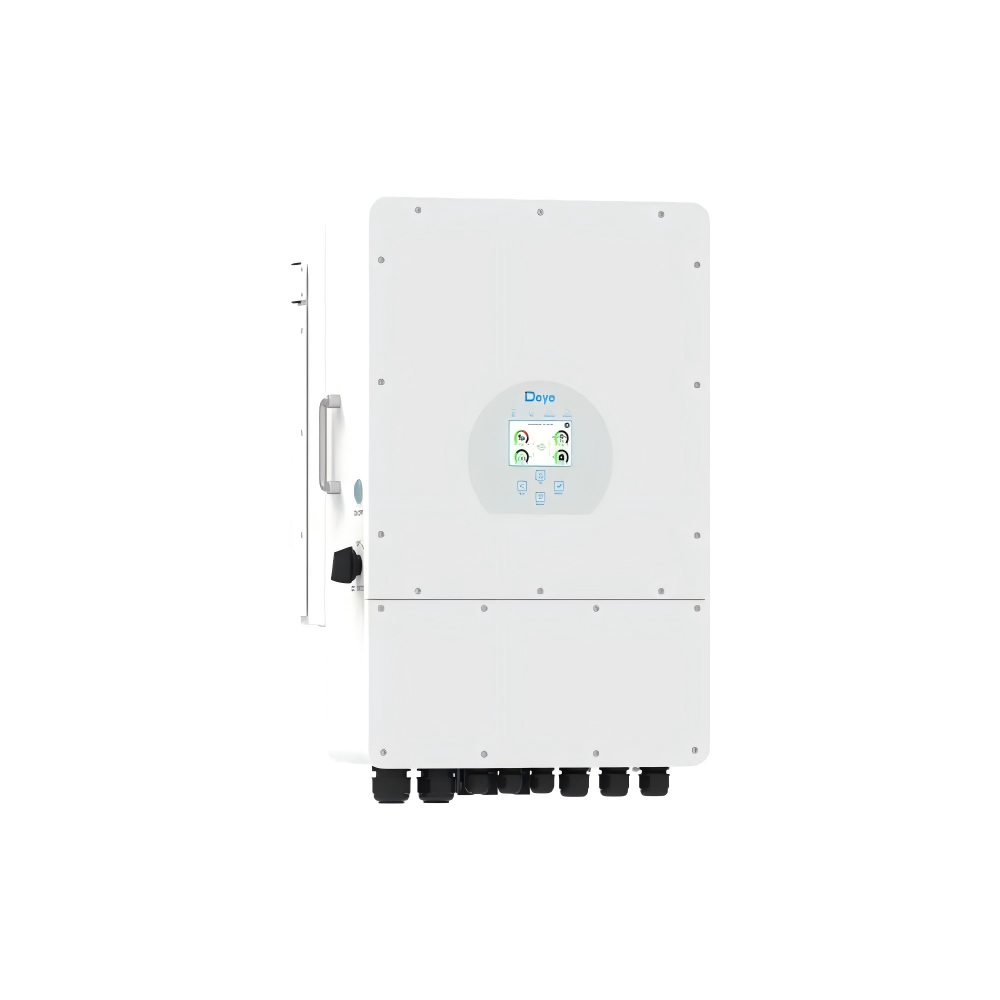

Product Picture
FAQ
What is the capacity range of this hybrid solar system?
The system is available in 8KW, 10KW, and 12KW configurations to meet different residential energy needs.
Is this hybrid solar system compatible with smart homes?
Yes. The hybrid inverter can integrate with intelligent monitoring and energy management systems to help users track and optimize energy consumption.
Can the hybrid system automatically switch between solar, battery and grid power?
Yes. The hybrid inverter can manage different energy sources according to the configured operating strategy, helping maintain a stable power supply and optimize energy utilization.
Is installation support available for the hybrid solar system?
Yes. Sunpal provides remote and project-specific installation support for its hybrid solar systems, including system design drawings, online technical guidance, system configuration assistance, and turnkey technical support for more complex projects. This helps customers and local installers properly integrate solar panels, a hybrid inverter, battery storage, a mounting system, and other system components in accordance with project requirements.
What output voltage options are available for this hybrid solar system?
The system supports three-phase and split-phase output configurations, allowing it to be adapted to different residential electrical requirements and regional power standards.
