Advanced Solar Tracking System for Optimal Sunlight Capture

System Accessories Tracker Mount

  • Front view 3D render of solar tracker mount showing structure and PV panel layout

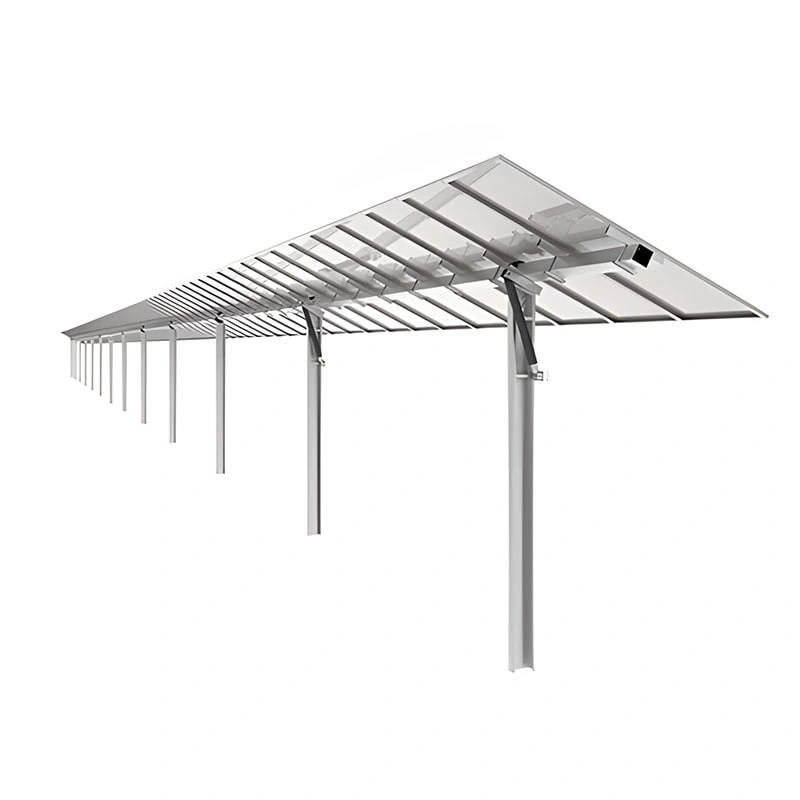

  • Side view 3D render of solar tracker mount showing support structure and panel tilt

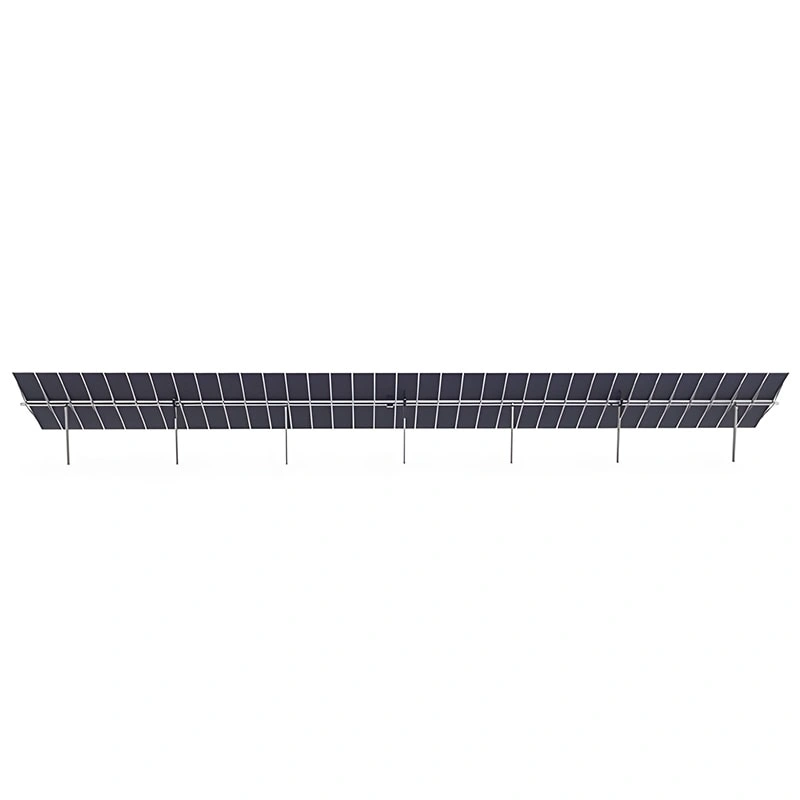

  • Panoramic 3D render of solar tracker mount showing full solar tracking system layout

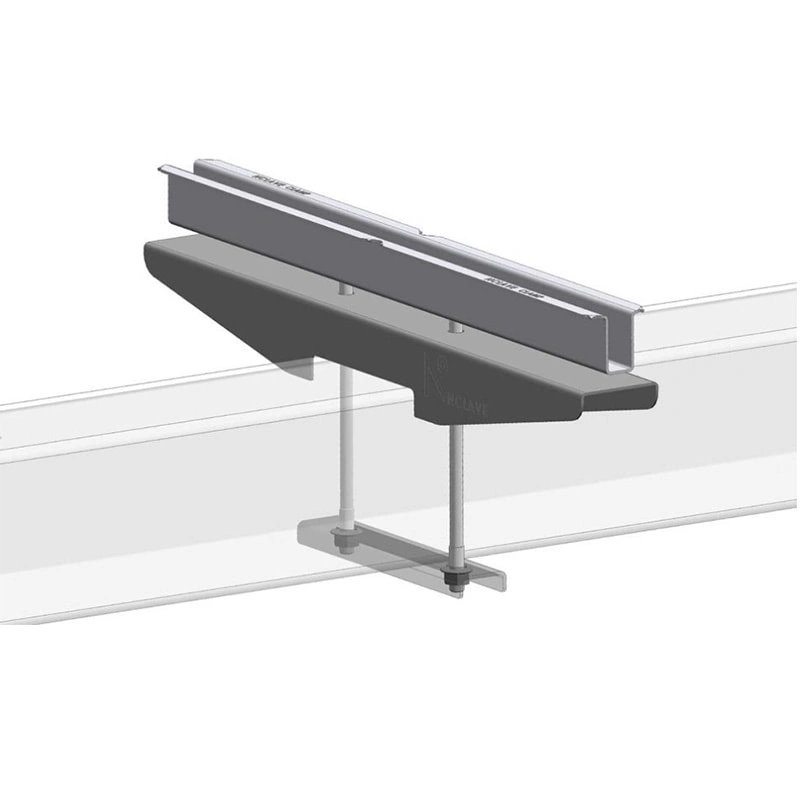

  • Detail 3D render of solar tracker mount showing mechanical components and support structure

Solar tracker mounts are high-efficiency solar installation systems using single-axis or dual-axis tracking technology to keep PV panels facing the sun, maximizing sunlight utilization and energy production. Constructed from high-strength steel or aluminum alloy with anti-corrosion treatment, they offer excellent wind and snow resistance and long-term durability. Modular design allows easy transport and on-site assembly. Drive types include servo motor or hydraulic drive for precise tracking. Solar trackers are ideal for industrial, commercial, and large-scale ground PV projects to optimize system yield.

Get Quote
ParameterDescription
Mount TypeSingle-Axis Solar Tracker
MaterialHot-dip galvanized steel or aluminum alloy
Compatible PanelsCrystalline silicon or thin-film PV panels
Tilt Angle RangeAdjustable 0°–60°
Tracking Accuracy±1°
Wind ResistanceUp to 60 m/s
Snow Load CapacityMaximum 1.4 kN/m²
Drive TypeServo motor or hydraulic drive
Installation TypeGround fixed, modular assembly
Service Life≥25 years
Suitable ProjectsIndustrial, commercial, and large-scale ground solar farms

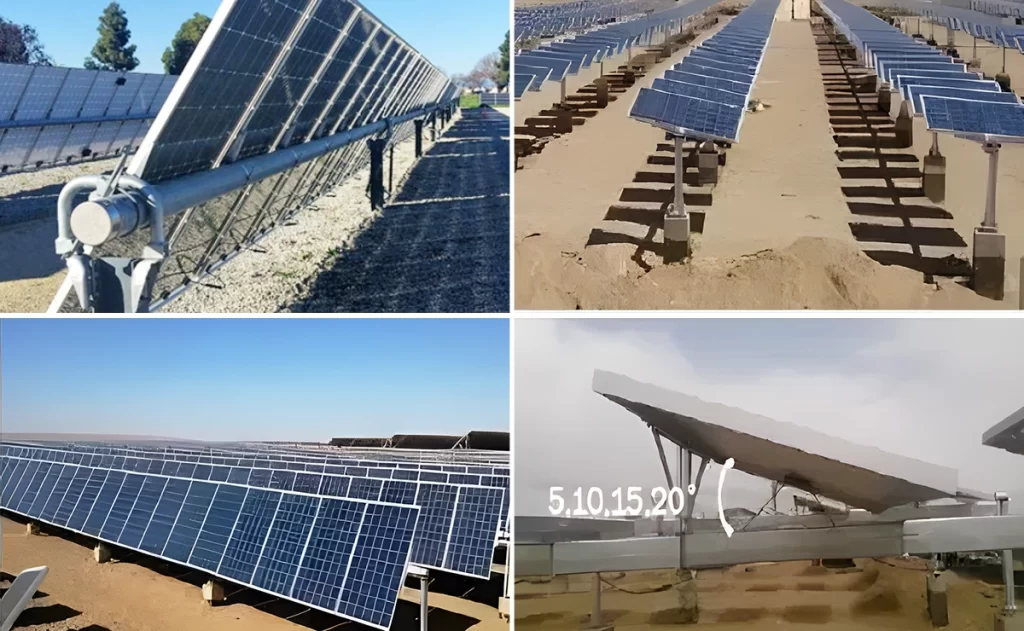

Physical Diagram of the Tracking Stand
