Specification
| Product Name | 8-12KW Hybrid Solar System | ||
| Model | SP-8KW-HY | SP-10KW-HY | SP-12KW-HY |

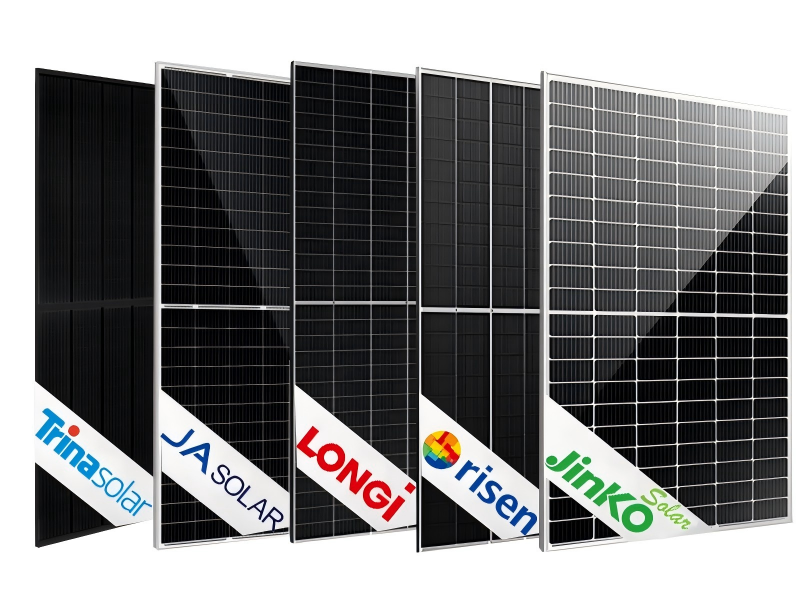

| Solar Panel | 590W x 14pcs | 590W x 16pcs | 590W x 20pcs |
| Battery Capacity | Lithium 5.12KWh | Lithium 10.24KWh | Lithium 10.24KWh |
| No.of MPP Tracker | 2 | 2 | 2 |
| Rated AC Input | 8KW | 10KW | 12KW |
| Daily Electricity Generation | 32-40Kwh | 40-50Kwh | 48-60Kwh |
| Output Voltage | Single Phase | ||
| Protective Devices | Optional | ||
| Cales & Connectors | Optional | ||
| Installation Instructions. | Supportable | ||
| Mounting System | Customized for Roof or Ground Optional | ||
System Connecting Diagram
Product Picture
FAQ
What is included in this system?
The system can include solar panels, lithium battery storage, a hybrid inverter, mounting system, cables, connectors, and other supporting components depending on the selected configuration.
What system sizes are available?
Sunpal offers 8kW, 10kW, and 12kW configurations, allowing the system to be matched to different household electricity requirements.
What appliances can a SUNPAL 8kW to 12kW hybrid solar system power during a grid power outage?
This hybrid solar system provides robust whole-home and light commercial energy backup. It can seamlessly support heavy inductive and continuous loads simultaneously, including central air conditioning units (3–5 HP), heat pumps, electric vehicle (EV) chargers, water pumps, refrigerators, security systems, home office setups, and kitchen appliances.
Does this hybrid solar system support diesel generator auto-start and peak shaving?
Yes. The hybrid inverter includes a dedicated Smart Load / Generator port with a built-in dry contact signal for automatic diesel generator start/stop control. Additionally, it supports intelligent peak shaving, time-of-use (TOU) rate optimization, and zero-export grid control to maximize electricity bill savings.
